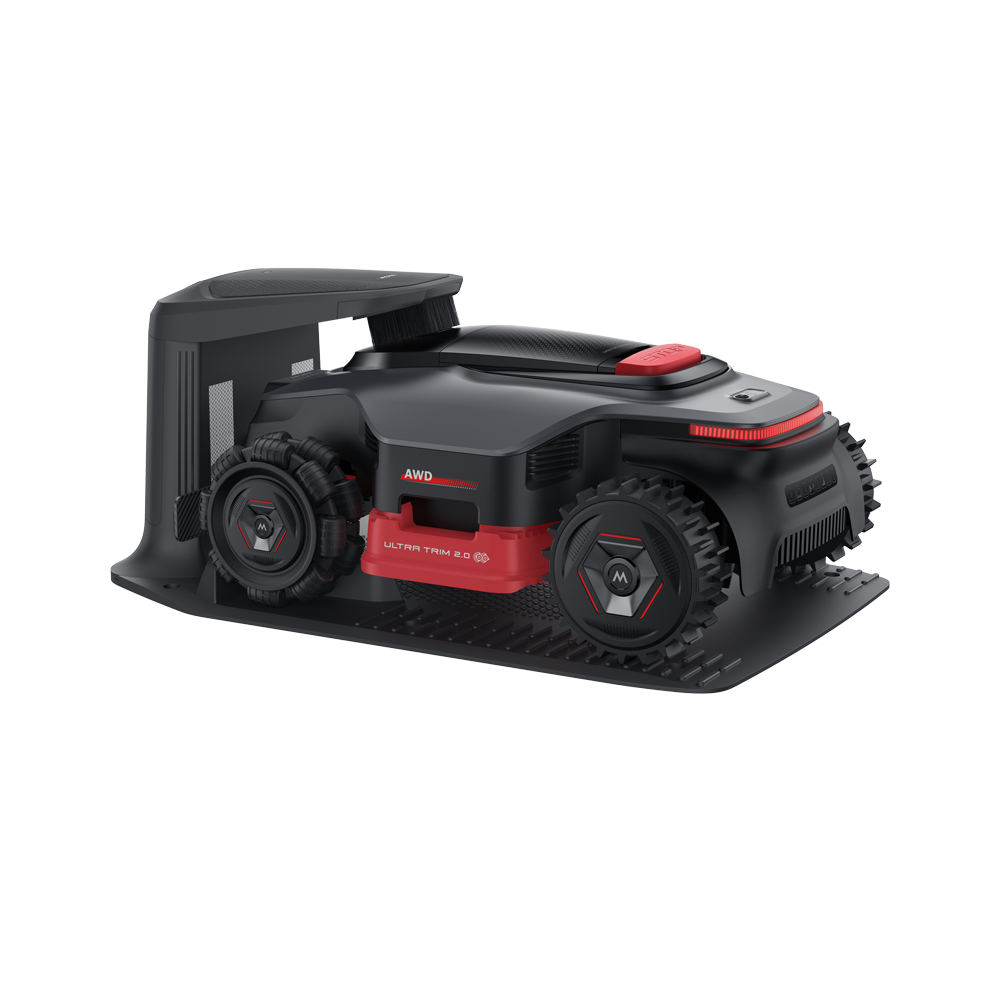

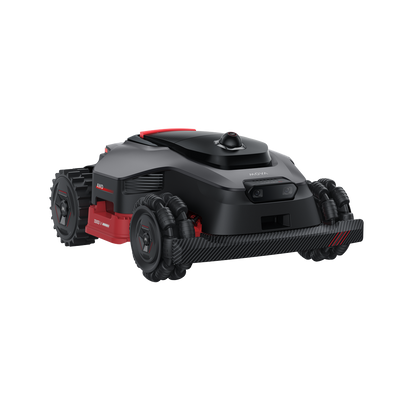

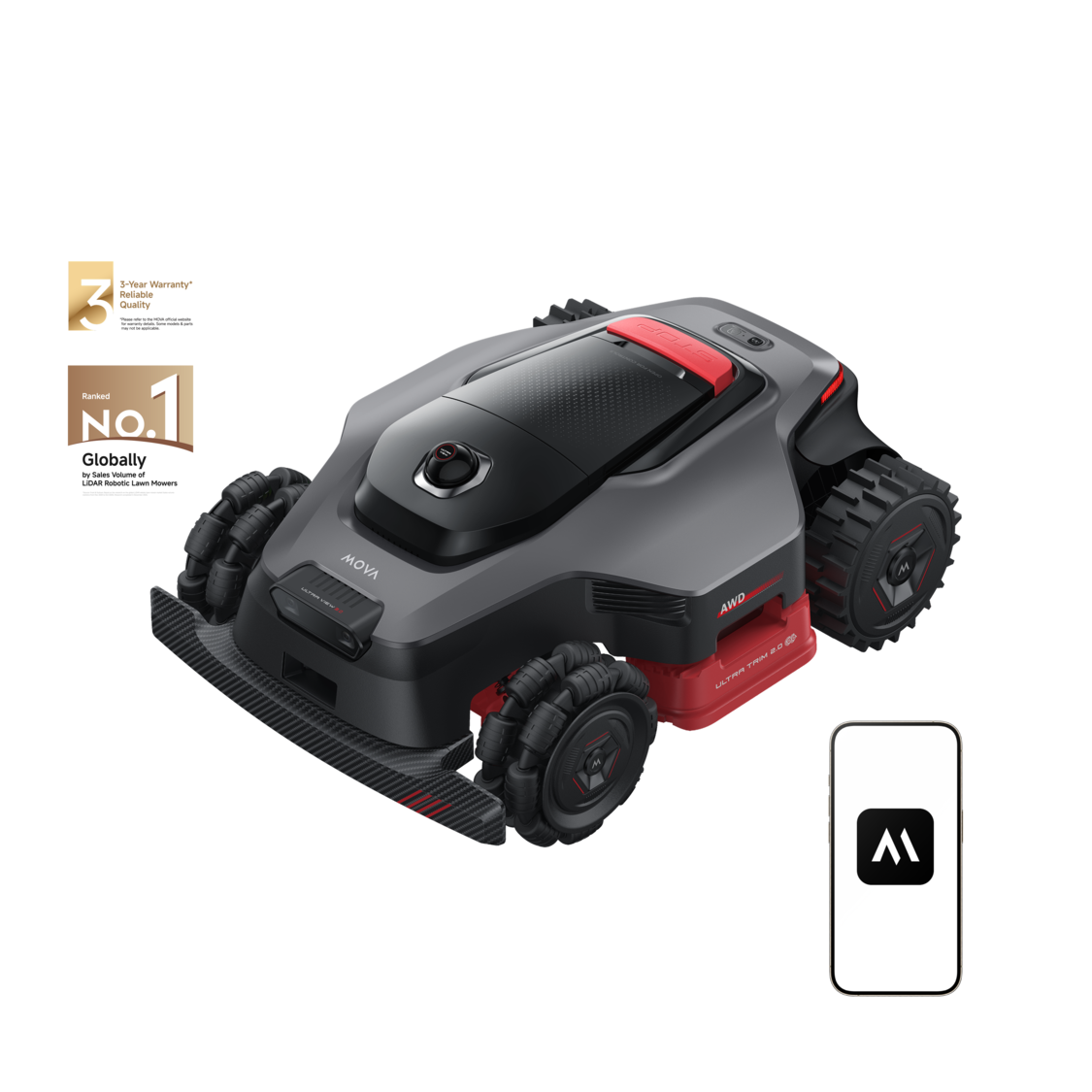

MOVA LiDAX Ultra AWD Series

MOVA LiDAX Ultra AWD Series

  • UltraView™ 3.0, RTK-Free Setup
  • AI-Assisted Auto Mapping, Hands-Free
  • UltraDrive™, Complex Terrain Mastered
  • UltraTrim™ 2.0, Clean & Crisp Edges
  • 36V Battery, Robust Power Output
  • Efficient Mowing with 40cm Dual Discs
  • 3–10cm Adjustable Cutting Height
  • AI Detects & Avoids 300+ Obstacles
  • Dual Maps & Up to 150 Zones
  • Anti-Theft for Peace of Mind
Model
View full details
LiDAX Ultra AWD Series
New

LiDAX Ultra AWD Series

Beyond Terrain, Defined by Deeper Insight

Watch Video

Ranked No.1

Globally by Sales Volume of LiDAR Robotic Lawn Mowers

AI-Assisted
Auto Mapping

Hands-Free

36V

Battery, Robust Power Output

40cm Dual Discs

Efficient Mowing with

UltraView™ 3.0
RTK-Free Setup

360° 3D LiDAR AI Dual-Vison

UltraDrive™

Complex Terrain Mastered

UltraTrim™ 2.0

Clean & Crisp Edges

Anti-Theft for
Peace of Mind

Anti-Theft for Peace of Mind

3–10cm Adjustable
Cutting Height

AI Detects & Avoids 300+ Obstacles

Dual Maps & Up
to 150 Zones

UltraView™ 3.0

Sensing Ahead

360° 3D LiDAR

Full-Range Detection
70m Extended Range
Centimeter-Level Precision
IP6K6-Rated Rugged Construction

AI Dual-Vision

Dual 1080p RGB Cameras
120° Wide-Angle
70m Detection Range
2MP High-Resolution 3D Imaging

Quick Setup, Instant Mow

Just power it on. The mower completes fast mapping and starts mowing right away-saving you hours of tedious setup with boundary wires or RTK stations.

AI-Assited Auto-Mapping, Pinpoint Precision

Driven by UltraView™ 3.0, the mower uses 360° 3D LiDAR and AI Dual Vision to precisely differentiates grassy and non-grassy areas, define lawn edges, capture environmental point cloud data, and generate a 3D map with virtual boundaries in minutes.

Navigates Anywhere, Nails It

Powered by UltraView™ 3.0, the mower maintains stable positioning and seamless navigation even in harsh/dim light or weak GPS conditions, such as dense foliage, wooded zones, narrow passages, or shaded slopes.

AI-Assisted Auto Mapping, Ample Precision

Driven by UltraView™ 3.0, the mower uses 360° 3D LiDAR and AI Dual Vision to precisely differentiates grassy and non-grassy areas, define lawn edges, capture environmental point cloud data, and generate a 3D map with virtual boundaries in minutes.

360° 3D LiDAR
AI Vision

Navigates All Terrain, Nails It

Powered by UltraView™ 3.0, the mower maintains stable positioning and seamless navigation even in harsh/dim light or weak GPS conditions, such as dense foliage, wooded zones, narrow passages, or shaded slopes.

Sees Accurately: 300+ Objects

Thanks to the AI Dual Vision and 360° 3D LiDAR, the AWD can identify both stationary and moving objects on the lawn with higher precision, detecting over 300 obstacle types, even as small as 2×2cm.

Objects300+
Objects300+

UltraDrive™ AWD

Conquers, Climbs, Commands

0%
Slopes Easily Handled
0cm
Vertical Obstacle Climbing

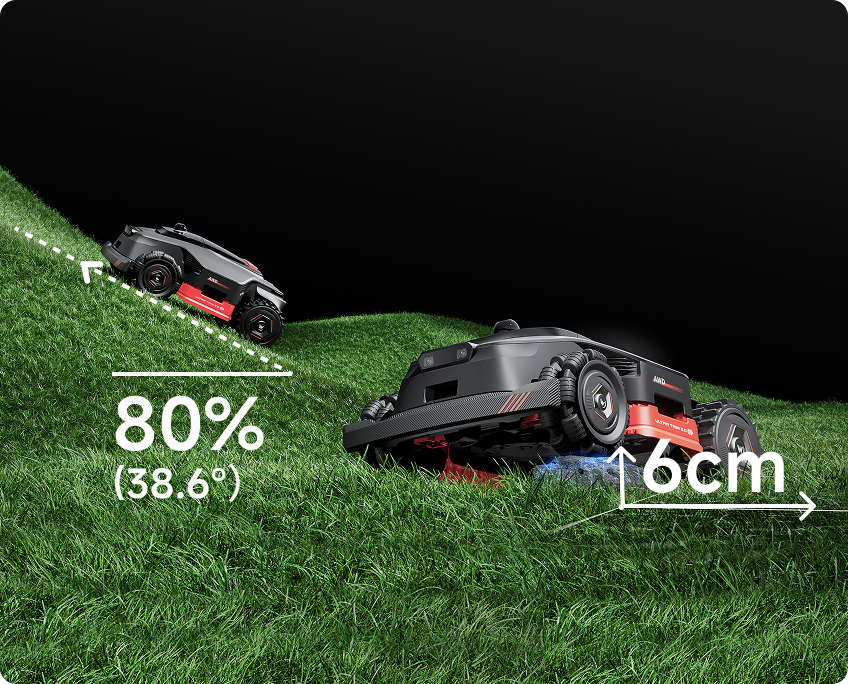

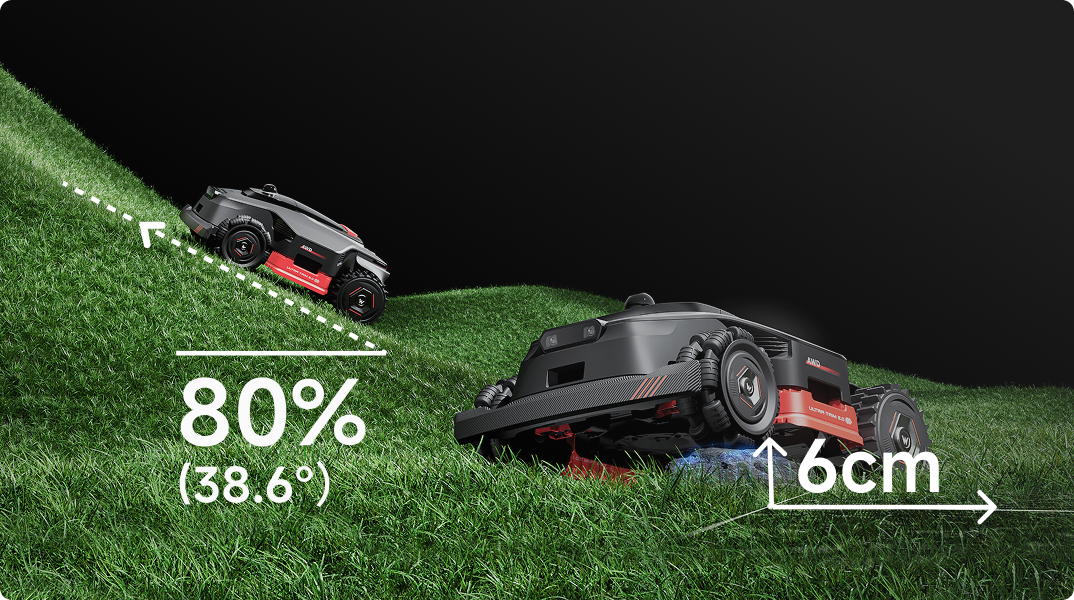

80% Slopes Easily Handled
4 high-torque 116W hub motors power the four wheels, significantly enhance the traction on challenging terrain, especially slopes as steep as 80%, keeping mowing steady and uninterrupted.
6cm Vertical Obstacle Climbing
The independent suspension reduces cross-wheel impact transfer and absorbs shocks, enhancing stability on uneven ground and enabling clearance over obstacles up to 6cm.

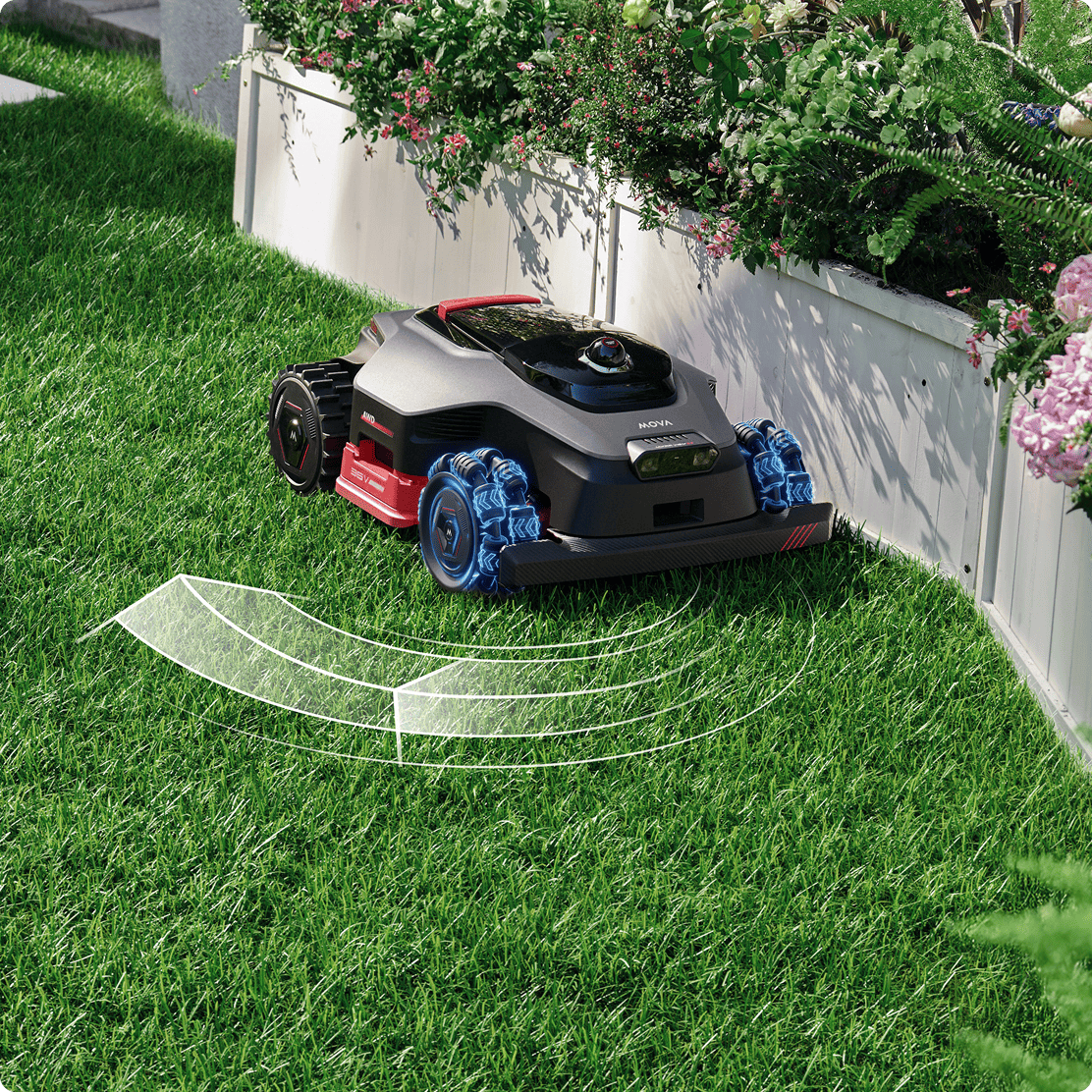

Near-Zero Turning Radius with Omni-Wheels
Omni wheels enable smooth, agile turns in tight spaces without tearing the turf, ensuring professional-grade lawn care.
Auto-Floating Discs with Turf Protection
The dual cutting discs automatically float to adapt to complex terrain, ensuring a consistent cut while preventing turf scalping.

Mows Up to 1000m² per Charge

Efficiency Beyond Compare

1000m2

Superior Coverage,
Enhanced Efficiency
Dual 180W cutting motors power 2 cutting discs with 6 blades each, delivering a 40cm cutting width and up to twice the mowing efficiency of ordinary models. Performance remains consistent, efficient even in overgrown, dense grass.
U-Path,
Unstoppable Tempo
The mower mows every inch of your lawn using U-shaped path planning, ensuring even, precise cuts. When the battery runs low, the mower automatically returns to the charging station and resumes mowing exactly where it left off.
Amplified Power:
36V Battery
The upgraded 36 V battery provides 243 Wh of power and features a 7.5 Ah high-capacity cell for extended runtime. A full charge in just 90 minutes supports up to 1000m² of coverage and 165 minutes of continuous operation.
5.5×
Coverage
1.5×
Power
2×
Runtime
(vs. 18V Battery, per Full Charge)
5.5×
Coverage
1.5×
Power
2×
Runtime
(vs. 18V Battery, per Full Charge)

Professional Lawn Edge Trimming

UltraTrim™ 2.0, Perfection Achieved
Boundary-Straddling Precision Mowing
Equipped with UltraTrim™ 2.0, the mower’s cutting discs extend outward to keep the gap between the lawn edge and the discs under 3cm*, ensuring a clean and accurate trim, even along elevated boundaries.
For level, smooth boundaries between grassy and non-grassy areas, the mower straddles the edge directly, ensuring the grass on the boundary is neatly cut.

Hassle-Free Customized Management

Hassle-Free Customized Management
Two Lawns, One Mower
Two Lawns, One Mower
Manage independent dual maps, ideal for two separate yards. Set up one or two Charging Stations* and create tailored mowing schedules for each map, streamlining operation without requiring a second mower.
Zones Mastered, Go & No-Go
Zones Mastered, Go & No-Go
Manage up to 150 individual areas. Customize mowing settings for each zone, define No-Go Zones—such as swimming pools or garden features—for intelligent avoidance, and create navigation channels between zones.
Tap to Trim:
3-10cm Cutting Height
The 3-10cm* adjustable cutting height accommodates seasonal adjustments and diverse grass types. Adjust anytime via the app—no manual knob tweaks needed—for a flawlessly manicured lawn.
Compatible Grass Types:
Ryegrass
Bluegrass
Bermuda Grass
Meadow Grass
Tall Fescue
Mowing Modes Mowing Modes detail
All-Area Mowing
Zone Mowing
Edge Mowing
Spot Mowing
Manual Mowing
Mowing Efficiency Mowing Efficiency detail
Standard
Suitable to finish mowing the whole lawn in a detailed, precise way
Efficient
Suitable to maintain a well-trimmed look of your lawn on a daily basis
Multi-zone Management
No-go zone
Work zone
Region naming
Schedule Schedule detail
Dual Mowing Schedules
Spring/Summer
Autumn/Winter
Consumables & Maintenance

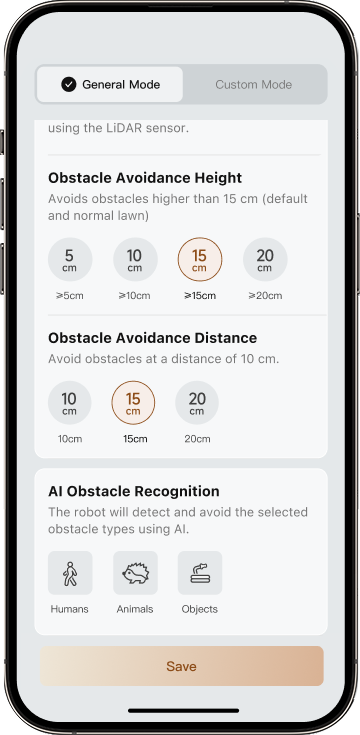

AI obstacle Recognition
Avoidance Distance
Avoidance Height
Mowing Height Mowing Height detail
Full Control through MOVAhome App
No repeated manual setup needed—simply open the MOVAhome App to manage your mower.
More Settings
Mowing Modes
Mowing Efficiency
Multi-zone Management
Schedule
Consumables & Maintenance
AI obstacle Recognition
Mowing Height

Mows Tender, Animals Safe

The mower protects animals on your lawn using intelligent detection and avoidance systems. It operates at reduced speed, giving animals more reaction time and minimizing disturbances.
Low-Speed Safety Mode
Custom Animal Activity Zones
Do-Not-Disturb Mode

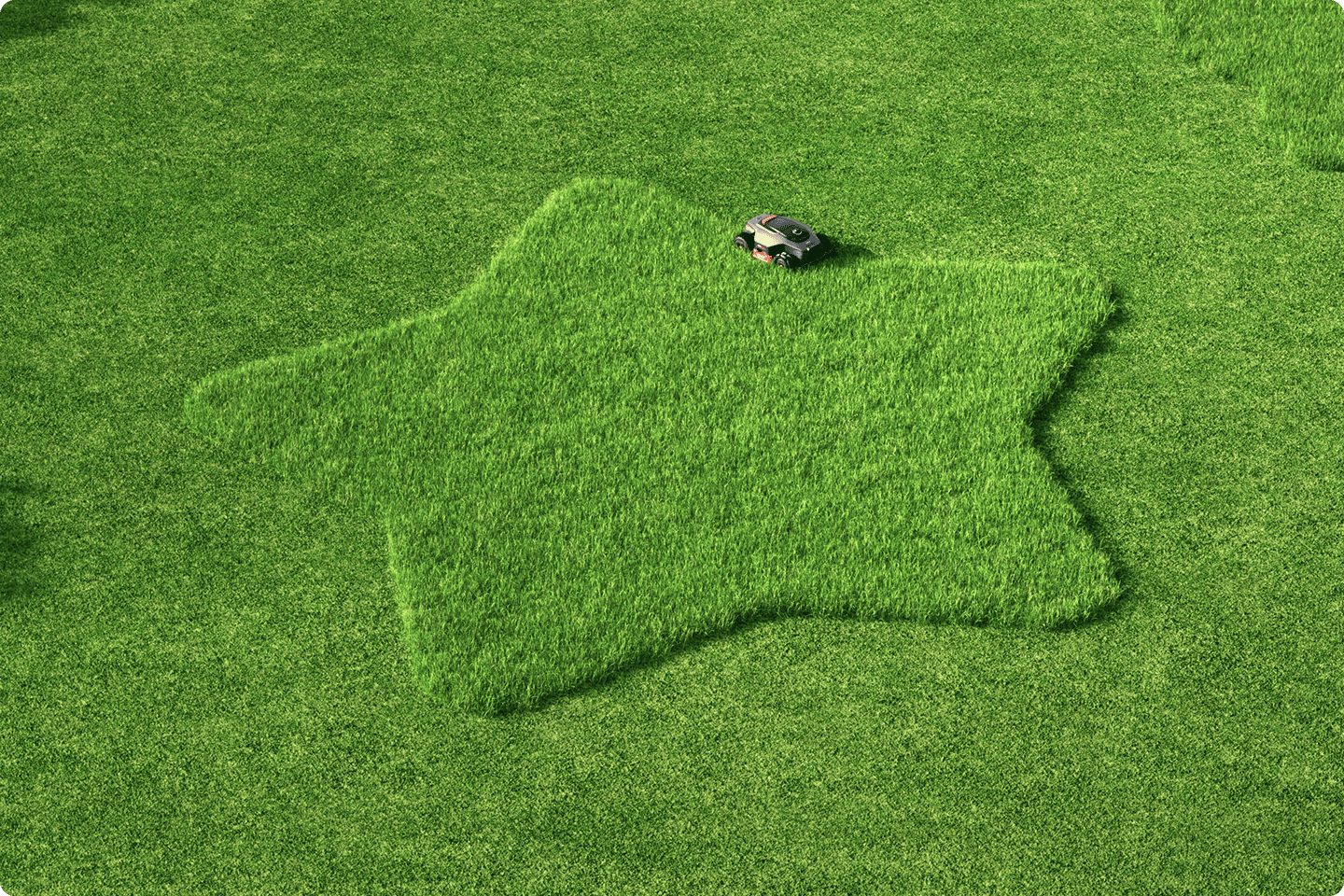

Patterns to Paint Lawns

Turn your lawn into a canvas—choose from the creative patterns via the MOVAhome App, and enjoy a visually stunning, artistic lawn.

No Theft Risk, Always Trackable

Location Tracking

Always track the real-time location via the
MOVAhome App using built-in GPS*.

*Includes 3-year free 4G service

AirTag Compatibility

Add an optional AirTag* for enhanced mower security.

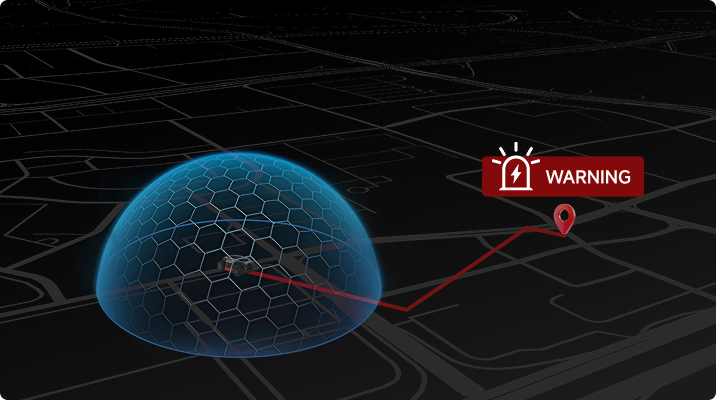

Off-Map Alarm

Triggers an audible alert instantly when leaving the mowing zone. Alarm stops only after you enter a valid PIN code.

Timely Notification

Get instant app notifications if the mower strays outside the designated area or is unexpectedly lifted.

TrueGuard™, Eyes Alert

Live Video Tracking

AI Dual-Vision keeps a continuous eye on your yard.

Live Video Tracking

AI Dual-Vision keeps a continuous eye on your yard.

Human Detection

Sends you instant photos when
human presence is detected.

Auto Patrol

Automatically patrols to secure
your yard when not mowing.

Live Audio

Speak through the mower to deter
strangers intruding your yard.

Beyond Mowing

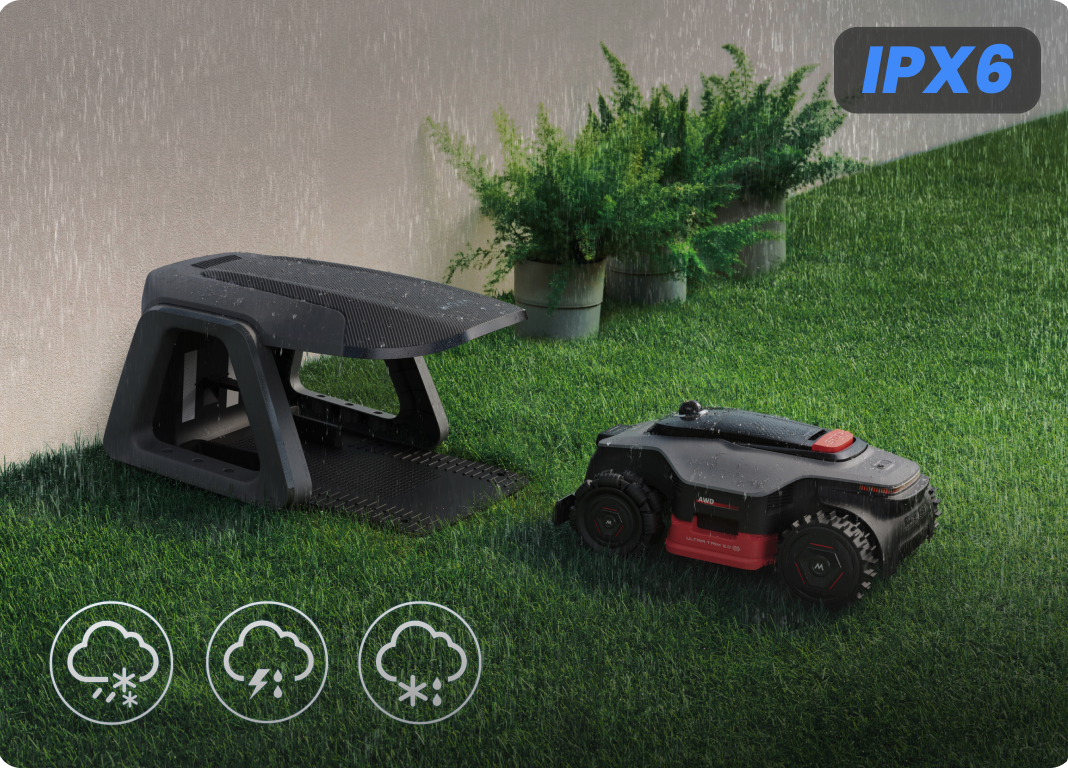

Use the garage to protect the mower from rain, snow, frost and harsh
weather, ensuring it stays safe and always ready for use.

Use the garage to protect the mower from rain, snow, frost and harsh weather, ensuring it stays safe and always ready for use.

Eco-Friendly

Weather-Sensing

Auto Wash-Point
Return

Weather-Sensing

Auto Wash-Point Return

Package List

LiDAX Ultra AWD Series
Robot Lawn Mower x 1
Charging Station x 1
Stakes / Hex Key x 8 / x 1
Power Supply x 1
Lint-Free Cloth x 1
User Manual x 1
Quick Start Guide x 1
Spare Blades / Screws x 36 / x 36
Screwdriver x 1
Cleaning Brush x 1
Learn More >
Specifications
1000
LiDAX Ultra AWD
1600
LiDAX Ultra AWD
2000
LiDAX Ultra AWD
Basic Information
Dimensions
Weight
Mapping & Navigation
Mapping Area
Mapping & Navigation
Positioning & Navigation
Map Views
Obstacle Avoidance
Mowing Capacity
Cutting Width
Blade & Disc
Floating Discs
Edge Trimming
Cutting Height
Path Planning
Runtime per Charge
Mowing Area Per Charge
Mowing at Night
Driving System
Drive System
Omni Wheels
Max. Slope Performance
Max. Vertical Crossing
Battery Capacity
Battery Voltage
Battery Capacity
Battery Energy
Charging Current
Charging Time
Anti-Theft
Anti-Theft
TrueGuard™
4G Services
Smart Control
Dual-Map
Multi-Zone
Mowing Modes
Mowing Direction Modes
Pattern Customization
More Functions
Waterproof
Warranty
Basic Information
Dimensions
740mm × 532mm × 321mm
Weight
23.6kg
Mapping & Navigation
Mapping Area
1000m² for Single
1000m²×2 for Dual
Mapping & Navigation
Remote Control + AI-Assisted Auto Mapping
Positioning & Navigation
UltraView™ 3.0
(360° 3D LiDAR+AI Dual Vision)
Map Views
2D & 3D
Obstacle Avoidance
360° 3D LiDAR + AI Dual Vision + Bumper
Mowing Capacity
Cutting Width
40cm
Blade & Disc
2 Discs, 6 Blades each
Floating Discs
Y
Edge Trimming
UltraTrim™ 2.0: <3cm
Cutting Height
3-10cm, Electronic
Path Planning
U-Shaped
Runtime per Charge
150-170min
Mowing Area Per Charge
800-1000m²
Mowing at Night
Y
Driving System
Drive System
AWD with 4 Hub Motors
Omni Wheels
Y
Max. Slope Performance
80% (38.6°)
Max. Vertical Crossing
6cm
Battery Capacity
Battery Voltage
36V
Battery Capacity
7.5Ah
Battery Energy
243Wh
Charging Current
5A
Charging Time
65min (15%-95%)
Anti-Theft
Anti-Theft
• Location Tracking
• Off-Map Alarm
• Timely Notification
• AirTag Compatibility*
TrueGuard™
• Auto Patrol
• Live Audio
• Human Detection
4G Services
3-year Free
Smart Control
Dual-Map
Y
Multi-Zone
Up to 150 Zones
Mowing Modes
All-Area/Zone/Edge/Spot/Manual
Mowing Direction Modes
Custom/Chequerboard/Crisscross
Pattern Customization
Y
More Functions
Waterproof
IPX6
Warranty
3 Years
Basic Information
Dimensions
740mm × 532mm × 321mm
Weight
23.6kg
Mapping & Navigation
Mapping Area
1600m² for Single
1600m²×2 for Dual
Mapping & Navigation
Remote Control + AI-Assisted Auto Mapping
Positioning & Navigation
UltraView™ 3.0
(360° 3D LiDAR+AI Dual Vision)
Map Views
2D & 3D
Obstacle Avoidance
360° 3D LiDAR + AI Dual Vision + Bumper
Mowing Capacity
Cutting Width
40cm
Blade & Disc
2 Discs, 6 Blades each
Floating Discs
Y
Edge Trimming
UltraTrim™ 2.0: <3cm
Cutting Height
3-10cm, Electronic
Path Planning
U-Shaped
Runtime per Charge
150-170min
Mowing Area Per Charge
800-1000m²
Mowing at Night
Y
Driving System
Drive System
AWD with 4 Hub Motors
Omni Wheels
Y
Max. Slope Performance
80% (38.6°)
Max. Vertical Crossing
6cm
Battery Capacity
Battery Voltage
36V
Battery Capacity
7.5Ah
Battery Energy
243Wh
Charging Current
5A
Charging Time
65min (15%-95%)
Anti-Theft
Anti-Theft
• Location Tracking
• Off-Map Alarm
• Timely Notification
• AirTag Compatibility*
TrueGuard™
• Auto Patrol
• Live Audio
• Human Detection
4G Services
3-year Free
Smart Control
Dual-Map
Y
Multi-Zone
Up to 150 Zones
Mowing Modes
All-Area/Zone/Edge/Spot/Manual
Mowing Direction Modes
Custom/Chequerboard/Crisscross
Pattern Customization
Y
More Functions
Waterproof
IPX6
Warranty
3 Years
Basic Information
Dimensions
740mm × 532mm × 321mm
Weight
23.6kg
Mapping & Navigation
Mapping Area
2000m² for Single
2000m²×2 for Dual
Mapping & Navigation
Remote Control + AI-Assisted Auto Mapping
Positioning & Navigation
UltraView™ 3.0
(360° 3D LiDAR+AI Dual Vision)
Map Views
2D & 3D
Obstacle Avoidance
360° 3D LiDAR + AI Dual Vision + Bumper
Mowing Capacity
Cutting Width
40cm
Blade & Disc
2 Discs, 6 Blades each
Floating Discs
Y
Edge Trimming
UltraTrim™ 2.0: <3cm
Cutting Height
3-10cm, Electronic
Path Planning
U-Shaped
Runtime per Charge
150-170min
Mowing Area Per Charge
800-1000m²
Mowing at Night
Y
Driving System
Drive System
AWD with 4 Hub Motors
Omni Wheels
Y
Max. Slope Performance
80% (38.6°)
Max. Vertical Crossing
6cm
Battery Capacity
Battery Voltage
36V
Battery Capacity
7.5Ah
Battery Energy
243Wh
Charging Current
5A
Charging Time
65min (15%-95%)
Anti-Theft
Anti-Theft
• Location Tracking
• Off-Map Alarm
• Timely Notification
• AirTag Compatibility*
TrueGuard™
• Auto Patrol
• Live Audio
• Human Detection
4G Services
3-year Free
Smart Control
Dual-Map
Y
Multi-Zone
Up to 150 Zones
Mowing Modes
All-Area/Zone/Edge/Spot/Manual
Mowing Direction Modes
Custom/Chequerboard/Crisscross
Pattern Customization
Y
More Functions
Waterproof
IPX6
Warranty
3 Years

Disclaimer

*The product appearance, structure, color, function and other details presented in the promotional materials are for illustration purposes only and may not be an exact representation of the product. Please refer to the actual product for accurate information.
*All data is based on our in-house or third-party labs. Actual performance may vary depending on environmental factors and usage.
*Dual-map functionality enhances efficiency when used with additional charging stations. Compatible charging stations and adapters are available as optional accessories.
*3-10cm refers to the distance between the blade disc and the ground. Based on our in-house lab data.
*AirTag needs to be purchased separately from the Apple Store.
*66dB represents the sound level of the mower in standard cutting mode.

MOVA LiDAX Ultra AWD Series
Overview
Package List
Specifications
